TrackLight Series

TrackLight: 100% Covert GPS Trailer Tracker

TrackLight is designed to look, work and install the same as a normal tail or side light. It delivers complete covertness, robust performance and the quickest and simplest installation of any asset tracker in the trucking industry. Using the existing trailer lighting circuits for power, it requires no extra wiring or mounting. Minimise the time your assets spend off the road and eliminate your installation costs.

If you can change a tail/side light, you can install a TrackLight.

TrackLight delivers complete covertness, robust tracking performance, and the quickest and simplest installation for increased fleet visibility.

TrackLight reports to Anytrek’s secure web portal which allows you to view the location of your fleet, define geofencing perimeters around specific locations, create multiple landmarks, view asset utilization reports, as well as manage and share your trailer maintenance requirements to increase your operational efficiency.Simple to install and powered by the trailer’s own lighting circuit, TrackLight is the perfect covert tracker for all trailer types.

Lens made of high-impact, scratch-resistant acrylic

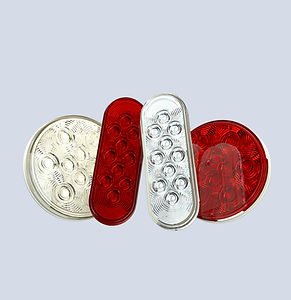

Available in 10 cm (4") round, 15.25 cm (6") oval and 10 cm (4") square formats

Inbuilt Li battery provides up to 3 months reporting when unpowered

Simple installation; uses existing wiring loom

Draws power from tail/side light and brake circuits

Looks, works and installs the same as a normal LED tail/side light

Waterproof, dustproof and shockproof

Uses Telstra 4G network for superior coverage

Available in different formats to suit all types of trailers


Tail Light

TrackLight looks and functions exactly the same as a standard 4” and 6" LED tail light, providing the ultimate in covert tracking and simple installation. Designed to function in the harsh conditions on the road, it is waterproof and shockproof. Inside the lamp case is a powerful GPS module connected via a 4G CAT-M modem, ensuring location updates are received reliably and accurately.

The built-in Lithium-ion battery can provide up to 90 days of location reporting with automatic notifications of changed conditions. The TrackLight tracker is a true plug and drive. Installation is as simple as replacing one of your own tail lights because that’s all there is to it.

The lights meet all FMVSS photometric requirements for visibility and safety and are DMT and FCC approved. Lenses and housing are made of tough ABS material and are ultrasonically welded.​​​


Side Marker Light

The side marker TrackLight looks and functions exactly the same as a standard 6” oval LED side lamp, providing the ultimate in covert tracking and simple installation using standard mounts. Rated at IP67, it is waterproof and shockproof and designed to  mount via a stainless steel bracket. Splicing into the existing lighting wiring loop provides all the power required for the TrackLight to reliably report its location and will continue to report for up to 3 months when un-powered. Stainless steel mounting brackets are available for trailers without existing side markers.

Specifications

VT20122-4 inch sq.jpg

Combo Light

The Combo tail light looks, functions, and installs the same as a standard 4” square LED Stop/Turn/Tail trailer light, providing the ultimate in covert GPS tracking and simple installation. Suitable for trailers, horse floats, RV’s, mobile equipment, it provides the ultimate in covert asset tracking. Rated at IP67, it is waterproof and shockproof  ensuring reliable, worry-free performance from the internal 4G modem. Powered by the standard tail light circuits, the inbuilt battery provides up to 6 months of reporting when unpowered. The AnyFleet web portal provides a rich source of data to assist you in operating your assets more efficiently.

  • Uses a standard hardshell plug, no extra wiring required

  • The lights meet all FMVSS photometric requirements for visibility and safety and are DMT and FCC approved.

  • Lenses and housing are made of tough ABS material and are ultrasonically welded.

  • Draws power from the stop and tail light circuits

  • Real-time tracking; every 5 minutes when powered, every 15 minutes when unpowered and moving

  • Web-based device management through the AnyFleet portal

  • Simple, secure API’s for integration into 3rd party Fleet Management Systems

  • Highly accurate A-GPS tracking

  • ‘Fast Charging’ power circuit

  • Uses TI ‘Power Path’ technology for instant wake-up when tail lights are turned on

  • Future proof by utilizing the 4G CAT-M mobile network

  • Ultra-low power consumption mode (<0.1mA)

  • 3-axis accelerometer for motion sensing and impact detection

  • Material: Polycarbonate Lens, PC/ABS Housing

  • Lens Color: Red/Clear/Amber

  • Housing Color: White

  • Mounting Type: Grommet, mounting ring

  • Voltage: 9-36V

  • Amperage: 0.018A-1.5A

  • Size: 4″ round and 6" oval

  • Certifications: FCC, ROHS, CE, DOT, IC, PTCRB

  • Connectivity: LTE, CAT-M

  • Backup Battery: 3.7 V Li 3000 mAH

  • Location Technology: GPS GLONASS

  • IP67 sealed enclosure
